Liver transplantation for mitochondrial DNA depletion syndrome caused by MPV17 deficiency: a case report and literature review

The mitochondrial DNA depletion syndrome (MDS) comprises a group of rare autosomal recessive genetic diseases that cause energy disorders in organs due to the reduction of mitochondrial DNA caused by variants in nuclear genes (1). The manifestation of MDS encompasses a wide range of tissues and organs, with early-onset MDS primarily characterized by predominant involvement in the brain, muscle disorders, and liver. Based on the clinical manifestation, MDS can be classified into myopathic, encephalomyopathic, hepatocerebral, and neurogastrointestinal disorders. Hepatocerebral MDS is associated with four genes: DGUOK, POLG, MPV17, and C10orf2 (2, 3). The MPV17 gene is located on chromosome 2p23.3 and consists of 8 exons that encode a protein that comprises 176 amino acids. This protein, known as the inner mitochondrial membrane protein, plays a crucial role in maintaining mitochondrial DNA and facilitating oxidative phosphorylation in mammals. The MDS causes severe organs disorders, with a poor prognosis in the majority of affected individuals. The therapeutic interventions available for MDS are currently limited, primarily focusing on providing symptomatic management, such as nutritional modulation and supplementation of cofactors, which may be used to slow down disease progression (1, 4–6). LT may be considered for certain patients, although its effectiveness remains a subject of controversy. In this case report, we present a case of LT for the treatment of hepatocerebral MDS with isolated liver disease associated with the MPV17 variant. After LT, the patient’s liver function was found to remain normal and there were no neurological symptoms.

2 Case presentation and literature review

2.1 Case presentation

A male patient aged 2.8 years was admitted to our hospital presenting with edema of the lower limbs and abdomen, which had persisted for over 10 days and was of unknown origin. There was no history of persistent vomiting, feeding difficulty, and muscle weakness. However, the patient had a history of failure to thrive. There was no similar history among his family members, and the parents were not consanguineous. The child had a personal history of being G1P1, born at full term through natural birth, with a birth weight of 3,200 g. His psychomotor development progressed typically, with head control achieved at three months, sitting independently at six months, and walking while vocalizing “mom” by one year of age. Language and motor milestones were consistent with developmental norms for children of the same age. Upon physical examination, the patient’s vital signs were found to be normal. The patient’s body height was 81 cm (Figure 1). The acoustic radiation force impulse (ARFI) revealed a significant elevation in liver stiffness, which is indicative of early-stage cirrhosis (30.3 kP, >F4 stage). Further, the results of cardiac ultrasonography and magnetic resonance imaging (MRI) of the brain were normal. However, the liver function and coagulation function of the patient deteriorated progressively after admission.

The patient was initially diagnosed with inherited metabolic liver disease due to refractory hypoglycemia, high lactate levels, and abnormal liver function. After obtaining the guardian’s consent, peripheral blood samples were collected from the patient and his parents for whole exome gene analysis. Subsequently Sanger validation was performed. The results revealed the presence of a homozygous missense variant in the MPV17 gene c.293C>T (p.P98l) (Figure 2).

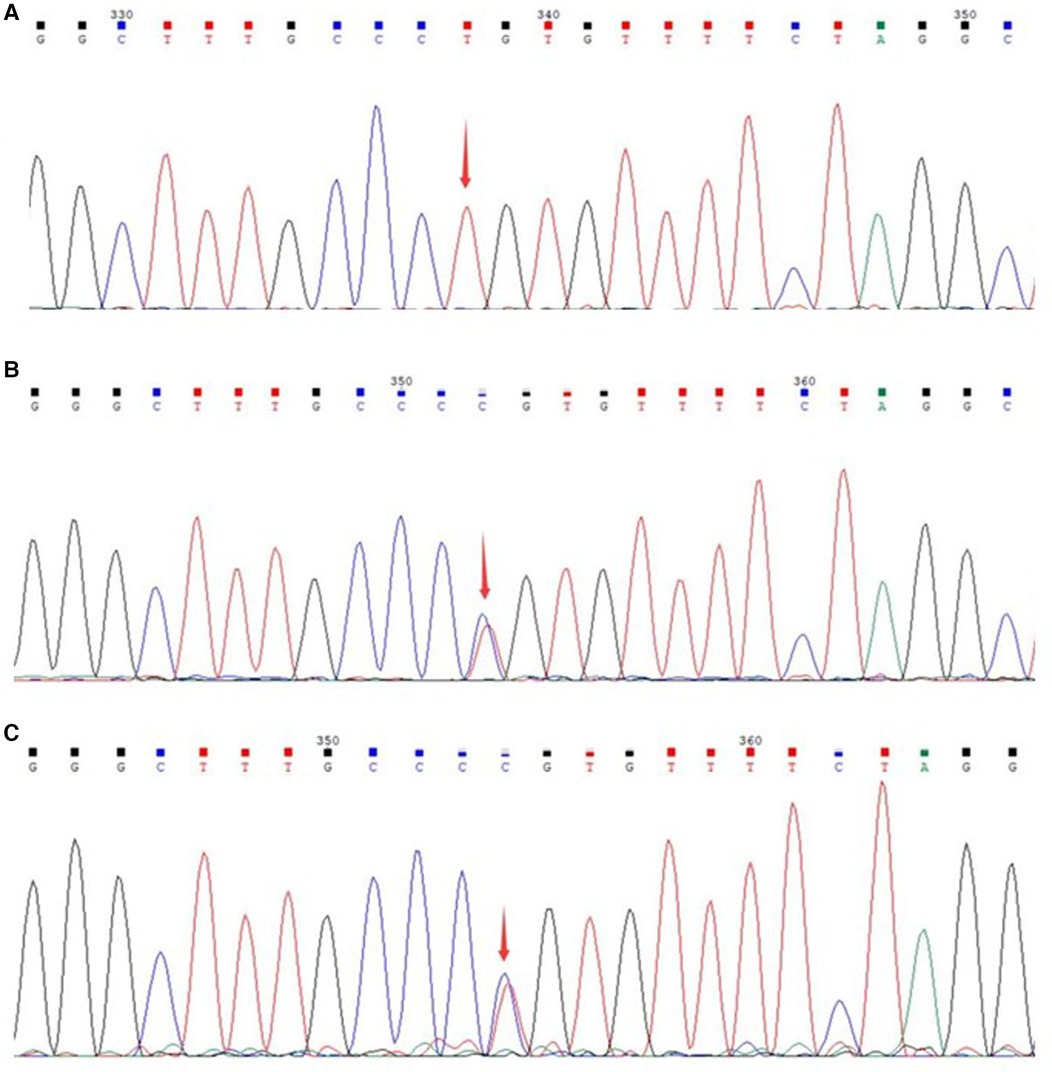

Figure 2 Sanger sequencing of the genes of the patient and parents. (A) Gene variant of the patient; (B) gene sequencing of the father; (C) gene sequencing of the mother.

After four weeks of admission (At aged 2.9 years), the patient developed acute-on-chronic liver failure. ALT was 3,507 U/L, AST was 1,733 U/L, GGT was 789 U/L, TBA was 366 µmol/L, TBIL was 507 µmol/L, DBIL was 358 µmol/L, and ALB was 27 g/L. The PT was 42 s, APTT was 59 s, Fib was 1.1 g/L, and the INR value was 3.4. This patient had no hepatic encephalopathy or psychobehavioral abnormalities at the time of liver failure. The patient underwent LT following the standard protocol, using a graft from a deceased donor. The donor, a brain-dead citizen, was registered with the China Human Organ Donation Management Center. Postoperative liver pathology revealed chronic hepatitis and nodular cirrhosis (Figure 3). The blood glucose and lactate concentration returned to normal within the first week following LT, coagulation function normalized 1.5 months after LT, and liver function was restored to baseline within 2 months after LT due to bacterial peritonitis. Tacrolimus and mycophenolate mofetil are currently being used for immunosuppression after LT. After the 12-month follow-up, the child was hospitalized twice due to respiratory infections. However, his blood glucose, lactate concentration, liver function, and coagulation remained within normal ranges. Currently, the patient is aged 3.8 years, with no neurological symptoms. The patient’s body height is 102 cm (P25–P50) and weight is 16.5 kg (P50). In addition, his psychomotor development is consistent with the developmental norms for children of the same age.

Figure 3 Liver morphology. (A) The whole liver tissue is a piece, the size is 12.5 × 9.2 × 5.3 cm, the section surface is gray-brown solid, and the quality is medium, showing nodular cirrhosis. (B) Microscopic examination of the structure of the liver lobules disappeared, fibrous tissue proliferation divided the liver lobules to form pseudolobules, small bile duct hyperplasia, and some hepatocyte steatosis. (C) Microscopic examination of the lobular structure of the liver disappears, hepatocyte edema, and steatosis. (D) Microscopic examination of the liver lobular structure is lost, fibrous tissue is accompanied by more lymphocyte infiltration, and gallbladder stasis can be seen. Liver pathological grading and staging showed that the inflammatory response is G2, fibrosis is S4.

2.2 Literature review

Twenty-three cases of MDS patients with hepatoencephalopathy caused by the MPV17 gene variant who underwent LT have been studied in the literature (7–16); 91.3% (21/23) of these patients experienced the onset of the disease within the first year of life. Moreover, isolated liver disease accounted for 21.7% (5/23) of the cases.

Among the 23 patients with LT, 12 survived while 11 died, thereby yielding a survival rate of 52.17% (12/23). Among the five hepatocerebral MDS patients with isolated liver disease, one patient died due to multi-organ failure a month after surgery. The other four patients achieved a survival rate of 80% (4/5), with four patients exhibiting no neurological symptoms during the three-year follow-up after LT. However, one patient developed neurological symptoms after five years and remarkably remained alive for up to 22 years after LT.

From among the 18 hepatocerebral MDS patients for whom the liver and nervous system were involved, 10 patients died (55.56%). The causes of death included sepsis in three cases, multiple organ failure in two cases, pneumonia in two cases, heart failure in two cases, and respiratory failure in one case due to respiratory muscle weakness. The liver failure symptoms disappeared after LT in 88.89% (16/18) of the cases, while neurological symptoms continued to progress.

Further, 15 variants in the MPV17 gene were identified in 23 patients. The first variant was c.149G>A (p.R50Q), found in 43.5% (10/23) of the patients, followed by c.451dupc: p.L151P fs*39, which was found in 26% (6/23) of the patients. Additionally, c.148C>T (p.R50W) was found in 17.4% (4/23) of the patients, and c.293C>T (p.P98l), the fourth variant, was found in 13.0% (3/23) of the patients (7–16). The survival rates of LT with the MPV17-related MDS were firstly c.293C>T (p.P98l) (100% 3/3), followed by c.149G>A (80%, 8/10), and then c.148C>T (50%, 4/8) (Table 1). The results revealed that the median survival time was 22 months, with survival rates of 69.5%, 38.6%, and 38.6% at intervals of 1 year, 5 years, and 10 years, respectively (Figure 4).

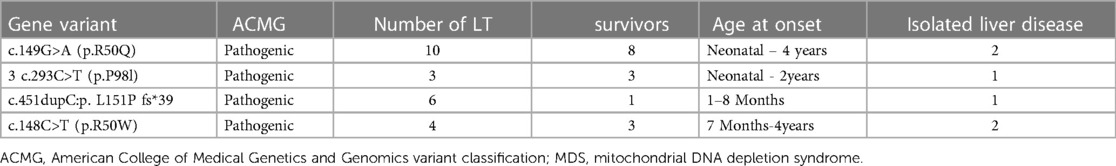

Table 1 Liver transplantation with the MPV17-related MDS.

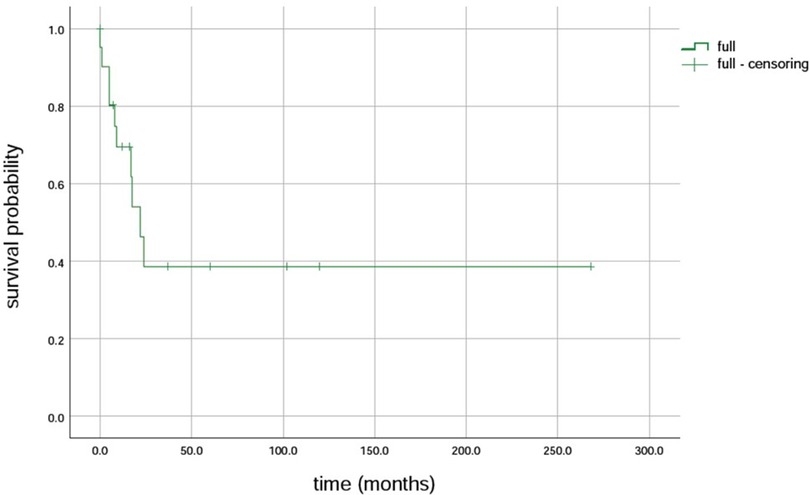

Figure 4 Survival rate of liver transplantation for MPV17 variant-associated mitochondrial DNA depletion syndrome.

Hepatocerebral MDS caused by the MPV17 gene variant exhibits an early onset in infancy; however, it can also manifest at other ages, including in adulthood (17–20). The manifestations of hepatocerebral MDS caused by the MPV17 gene variant are primarily found in the hepatic and nervous systems (21). The liver manifestations include cholestasis, hepatomegaly, steatosis, and cirrhosis; the neurological manifestations include muscle weakness and dystonia, sensory deficits, peripheral neuropathy, motor abnormalities, microcephaly, seizures, etc. Additionally, other presentations include metabolic disorders (hyperlactatemia, hypoglycemia, and hyperammonemia) and gastrointestinal symptoms (weight loss/poor weight gain, difficulties in feeding, vomiting, and dysphagia). The liver and nervous system were both involved in 75% of the patients, while isolated liver disease was observed in 25% of the patients.

No effective therapy is currently available for MDS. The existing treatment mainly focuses on providing symptomatic management, which involves the administration of vitamins, respiratory substrates, coenzymes, etc. (1, 22). Increasing the frequency of feeding or considering continuous feeding, along with the administration of raw cornstarch, can be potential strategies to enhance hypoglycemia management (23). However, patients still experience liver degeneration and eventually develop neurodegeneration (24). Gene therapy and nucleoside supplements for MDS are currently in the preclinical phase. In addition, AAV-mediated gene therapy revealed rescue in mtDNA and partial rescue in multiple oxidative phosphorylation function in MDS models carrying mutations of MPV17 (24–26).

Further, the prognosis for individuals with MPV17-associated hepatocerebral MDS is generally poor, as evidenced by the occurrence of early liver failure in 80% of the cases (2). In the absence of LT, most affected individuals succumb to progressive liver failure during infancy or early childhood (27, 28). LT is the only effective intervention for liver failure, yet its efficacy remains contentious due to the involvement of multiple organs. Studies have revealed that although LT can yield a 10-year survival rate in children with MDS, it does not prevent the development of neurological symptoms after LT (21). The results showed a 1-year survival rate of 69.5%, 5-year survival rate of 38.6%, and 10-year survival rate of 38.6% (29).

LT can ameliorate hepatic symptoms and complications, such as coagulation dysfunction, hypoproteinemia, hyperlactatemia, hypoglycemia; however, it does not improve neurological symptoms (7, 16). Study showed that MDS with isolated liver disease before LT; however, they presented neurological symptoms such as epilepsy, mild intellectual disability, dysarthria, and motor dysfunction five years after LT (7). The neurological symptoms continued to progress after LT, with a duration ranging from 1 to 11 years (7–9, 14, 16).

The prognosis may vary for individuals with different MPV17 gene variants in LT. The literature data revealed that the c.149G>A (p.R50Q) variant might be associated with a more favorable prognosis, followed by the variant c.293C>T (p.P98l) (23, 30). The mortality rate after LT was 45.8%. It is crucial to emphasize the necessity of preventing infections such as sepsis, pulmonary hypertension, heart failure, respiratory failure, and multiorgan failure following LT. The utilization of LT as a beneficial therapeutic approach can be considered in patients harboring mutations in DGUOK, MPV17, and POLG due to their clinical manifestation of severe hepatic impairment. In addition, isolated liver involvement of DGUOK-related MDS was reported in 21.9% of the cases (31). LT was performed in 26 patients with DGUOK-related MDS. The median survival was 1.92 years in the overall cohort of transplanted patients, and the mortality rate was 50% after LT. Further, 23% of the patients developed additional neurological symptoms after LT (31). All those outcomes in DGUOK-related MD were similar to the MPV17-related MD. This intervention holds promise for success if patients present exclusively with significant liver damage without concurrent multisystem dysfunction.

In conclusion, hepatocerebral MDS patients without neurological symptoms may derive the greatest benefit from LT.
